1.描述DescriptionQ?span>
直臂伸羃式v重机包括一底Q其底通过一个旋转系l的塔体相连Q旋转系l与那个被设|在船舶甲板下的动力装置相连?

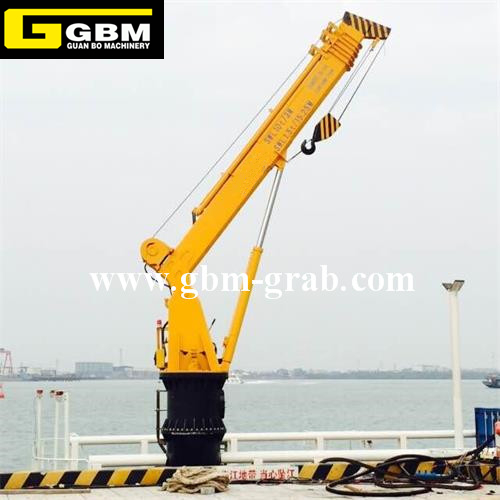

The marine telescopic crane comprises a base, which the base is connected with a tower body through a rotating system; the rotating system is connected with a power device which is arranged under a ship deck.
2.应用范围Typical ApplicationsQ?
服务起重机，供应和货物装卸v重机Q捕鱼和养鱼起重?
Service cranes, Provision and cargo handling cranes, Fishing and fish farming cranes
3.Ҏ(gu)和选项Features & Options:
|
?/span>?/span>Features |
可选项Optional |
|
q蝲保护装置Overload protection device |
遥控Remote control |
|
长寿命u承和雉?/span>Long time bearing and components |
操作q_Standing platform |
|
?sh)压低保护功?/span>Voltage lower protection function |
操作?/span>Operator’s cabin |
|
紧急停车系l?/span>Emergency stop system |
lRWinch |
|
起升高度限位装置Lifting height limit device |
|
|
三个或更多功能同时操?/span>Simultaneous operation of three or more functions |
|
|
?/span>/低温作业High/ Low temperature operations |
|
4.产品pdProduct Range
可订购v重机的v重能力范围从0.5吨到150吨的范围内的产品?/span>
The range of crane lifting capacities range from 0.5 tons up to 150 tons.
5. 主要技术参?/span>Main Technical Parameters
|
起重?/span>SWL |
40t@6.5, 3t@40m |
|
|
工作q度Working range |
最?/span>Max.40m/最?/span>Min.6.5m |
|
|
起升高度Hoisting height |
30m |
|
|
机构工作速度 Working speed of Mechanism |
起升机构Lifting mechanism |
0~15m/min |
|
变幅机构Luffing mechanism |
~120s |
|
|
回{机构Rotary mechanism |
0.5r/min |
|
|
q行机构Running mechanism |
2.7~27m/min |
|
|
横?/span>/U?/span>Heel/Trim |
?/span>5/ ?/span>2 |
|
|
设计温度Desinge Temp. |
-20~+40 |
|
